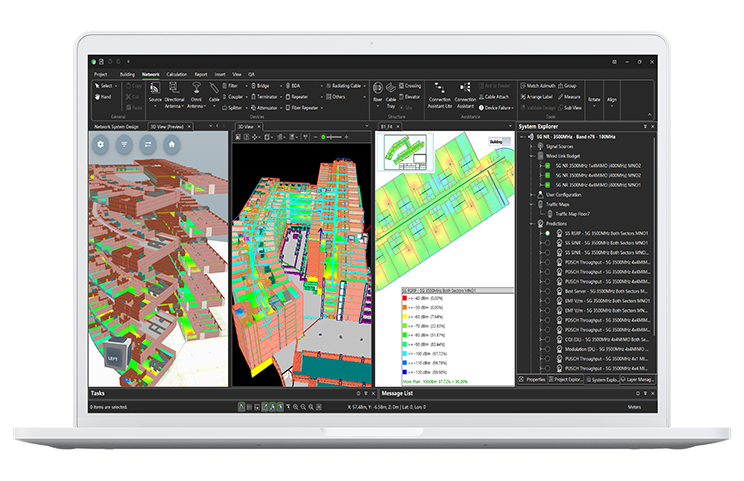

Ranplan In-Building is the ultimate high-performance software for rapidly and cost-effectively planning and optimising indoor networks for a diverse range of environments, including commercial buildings, hospitals, stadiums, and transportation hubs.
Indoor Design Solutions
Supports solutions for large, complex in-building projects such as Active/Passive DAS, Wi-Fi and small cell networks
Rapid and Cost-Effective
Delivering up 30% CAPEX/OPEX savings and increasing design productivity by 50%
Fast Indoor 3D Ray-Tracing
Realistic 3D modelling capability and advanced propagation engine for design precision
Multi-Technology Support
Supports multiple technologies such as 5G NR, 4G (LTE), 3G, IoT, Wi-Fi, TETRA, PMR, DMR and P25
Features
The World’s Leading In-Building Network Planning Tool
Ranplan In-Building incorporates all the latest 5G and Wi-Fi technologies to tackle the most complex indoor environments.
NETWORK DESIGN
Accelerate and Automate In-Building Network Design Time
Significantly reduce time and cost when designing indoor networks with Ranplan’s powerful automation tools. Trust your designs with our live database featuring multiple vendor-approved components that are rigorously validated and represent all wireless technologies.
- Create 3D building models in just minutes by importing IFC (Industry Foundation Classes) files from various BIM (Building Information Modelling) authoring software, such as Revit, Edificius, ArchiCAD, EdiLus®, SketchUp®, VectorWorks®, Rhino®, Tekla® and more.
- Seamlessly import 3D IFC building models from the Metaroom® LiDAR scanning app.
- Automatically reconstruct 3D building models from imported 2D Auto CAD floorplans.
- The Intelligent Floorplan Recognition (IFR) tool assists in modelling your environments from images or drawings when official floorplans are unavailable.
- Our Network System Design tools empower you to flexibly build and configure networks for a wide range of venues and environments.
- The Intelligent Network Optimization tools enhance the automation of network designs and improve network performance.
- Access our large multi-vendor component database to populate your network with verified devices.
- Support for Active and Passive DAS, small cells, Wi-Fi technologies.
NETWORK PREDICTIONS
Predict and Optimise Indoor Coverage and Capacity
Optimise your network design with Ranplan In-Building’s network coverage and capacity predictions providing invaluable insights into the end user experience and overall network performance. By perfecting your designs prior to deployment, you can ensure that your network solutions meet the required Key Performance Indicators (KPIs).
- True 3D ray-tracing propagation engine for predicting wireless coverage inside complex indoor environments.
- Employ precise 3D coverage heat maps and cross-floor simulations to identify issues before deployment.
- Benefit from Intelligent and automatic network optimization modules for cell, topology, frequency and power sharing planning.
- Conduct full traffic capacity simulations and analysis with the Wireless Network Simulation tool.
ADVANCED REPORTING
Access Real-Time Actionable Insights
Use the powerful and automatic reporting features in Ranplan In-Building to gain up-to-the-minute project information and produce reports at the simple click of a button.
-
Automated reports providing real-time updates.
-
Choose from multiple reports including equipment list, equipment budget report, cable routing, cross-reference and Bill of Materials.
-
Evaluate antenna performance with Antenna EIRP and Antenna Link Budget reports.
-
Calculate and report on network energy consumption.
-
Maintain compliance with EMF regulations using the dedicated report.
-
Easily print Network System Design and Floor Layout Design documents.
FAQs
Frequently Asked Questions
Can’t find the answer you are looking for below? Visit our full library of FAQs for more information or get in touch if you still need help.
Can I create custom report templates within Ranplan Products and if so how?
Yes, users can create their own custom layouts for reports within Ranplan Products. For detailed information on how to do this please refer to the user documentation for the relevant software package.
Where/how can I access the download package for the latest versions of Ranplan?
The latest versions of Ranplan Professional, DAS and Tablet can be downloaded from the ‘Downloads’ section of your account on the GLS end user portal. Please note that you will only have access to the install packages for which you have license keys.
How accurate is the default propagation model used in Ranplan?
Under general circumstances the 3D ray-tracing model is accurate to within 6dB RMS error of the measured scenario and this has been independently verified.
How does ‘CAD Import’ in Ranplan differ from the current functionality offered by other suppliers?
The Smart Extract tool within Ranplan takes a much more visual approach to identifying walls, doors, windows, columns and inclined planes with no need to interact with the many layers in the CAD file.
What type of algorithm is used in the optimization modules and what does that mean for me as a user?
The optimization modules (ICO, IAO and IFO) all use heuristic algorithms to determine the results they provide. This means that the optimization modules will attempt to provide the best outcome based upon the restrictions or parameters provided by you, the user.
